ONEFIT LX

Forward-Facing Installation & Usage

For children 26.5-65 lbs. (12-29.5 kg) and up to 54" (137 cm) tall.

For full details, refer to User Guide

Chicco OneFit LX & OneFit Max All-in-One Car Seat - Installing with Seatbelt: Forward-Facing

Learn how to correctly install the OneFit LX & OneFit Max All-in-One Car Seat forward-facing with the lap/shoulder vehicle seat belt

Secure to Vehicle: Forward-Facing

Quick Tip: Always use top tether when available. Before placing the seat in the vehicle, remove top tether from storage compartment on the back of the seat. You will attach the top tether later in the process.

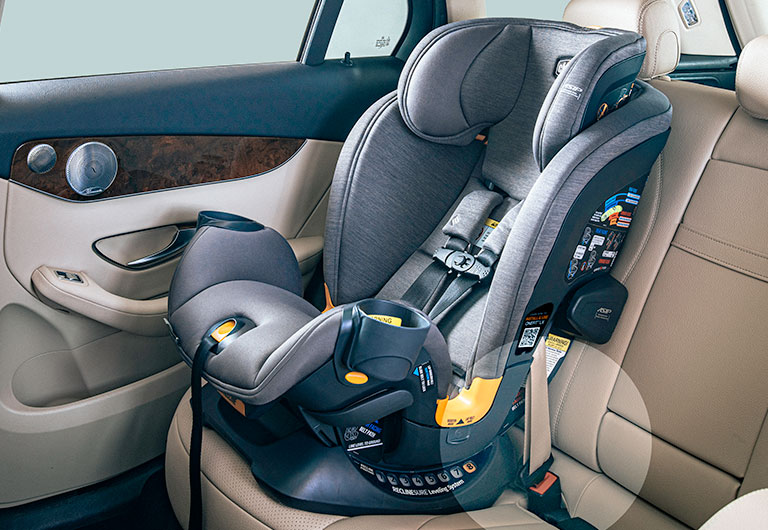

Chicco OneFit LX belt routing image

Place your OneFit on your vehicle seat in forward-facing position. Make sure it is not blocking the vehicle seat belt buckle and that the base is flat on the vehicle seat surface. Lay the tether strap over the back of the vehicle seat.

Check that the headrest of the vehicle seat does not interfere with the headrest of the OneFit

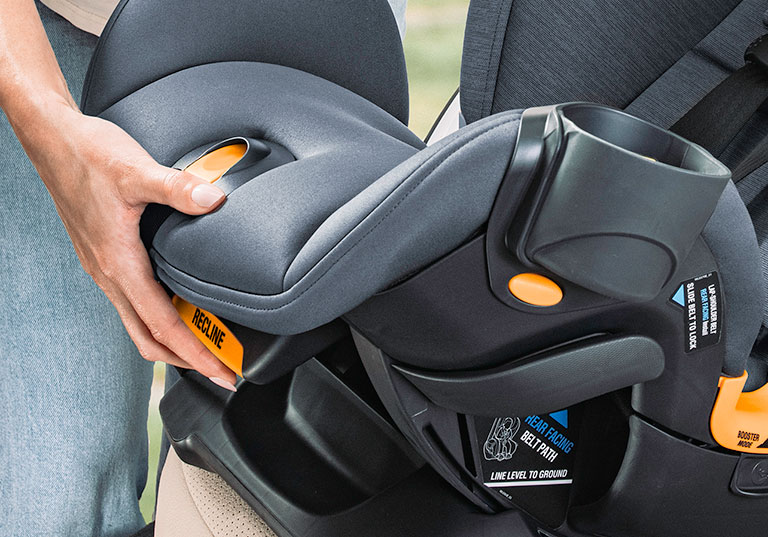

Chicco OneFit LX recline adjustment image

Squeeze the Recline Adjustment Handle and pull forward to adjust to a reclined position.

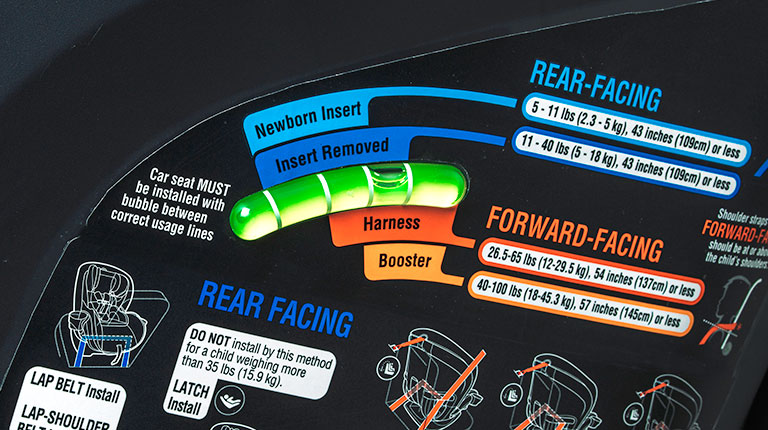

Chicco OneFit LX rear label image

Make sure the bubble level falls between the two lines for the proper forward-facing harness installation mode of use. Re-adjust recline as necessary.

For forward-facing harness mode, the recommended method is LeverLock® vehicle belt installation

FRONT-FACING HARNESS INSTALL

Chicco LeverLock Installation banner image

Raise the headrest to the highest position and lift the headrest fabric up and out of the way.

Unsnap the seat pad fabric and pull the seat pad fabric forward to locate the LeverLock® release handle.

Chicco OneFit LX LeverLock position 1 image

01 OPEN

Release and rotate the LeverLock® handle to the left. Allow the handle to open and drop down completely.

Chicco OneFit LX LeverLock Seatbelt image

02 ROUTE

Route the vehicle belt along the RED forward-facing belt path and buckle the vehicle belt.

Chicco OneFit LX LeverLock position 2 image

03 THREAD

Thread the vehicle belt between the LeverLock® tension bars and remove vehicle belt slack.

Chicco OneFit LX LeverLock position 3 image

04 CLOSE

Lift and rotate the LeverLock® handle to the right until it locks (you will hear a click).

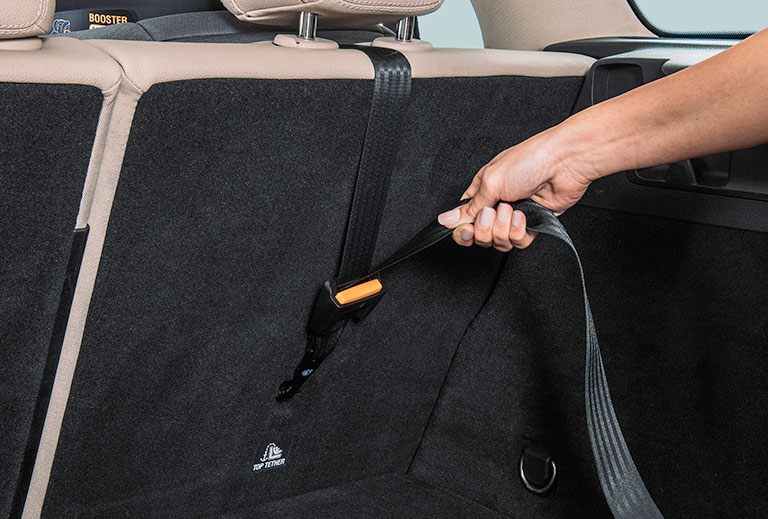

Chicco OneFit LX tether image

Locate the tether anchor in your vehicle, attach the tether hook and pull the adjuster strap to tighten.

Check installation.

Secure Child: Forward-Facing

Chicco OneFit LX & OneFit Max All-in-One Car Seat - Securing Child: Forward-Facing

Once your child is between 25-65 lbs. and up to 49" tall, you'll need to convert your OneFit LX or OneFit Max All-in-One Car Seat to Forward-Facing mode. Learn how to correctly secure your child.

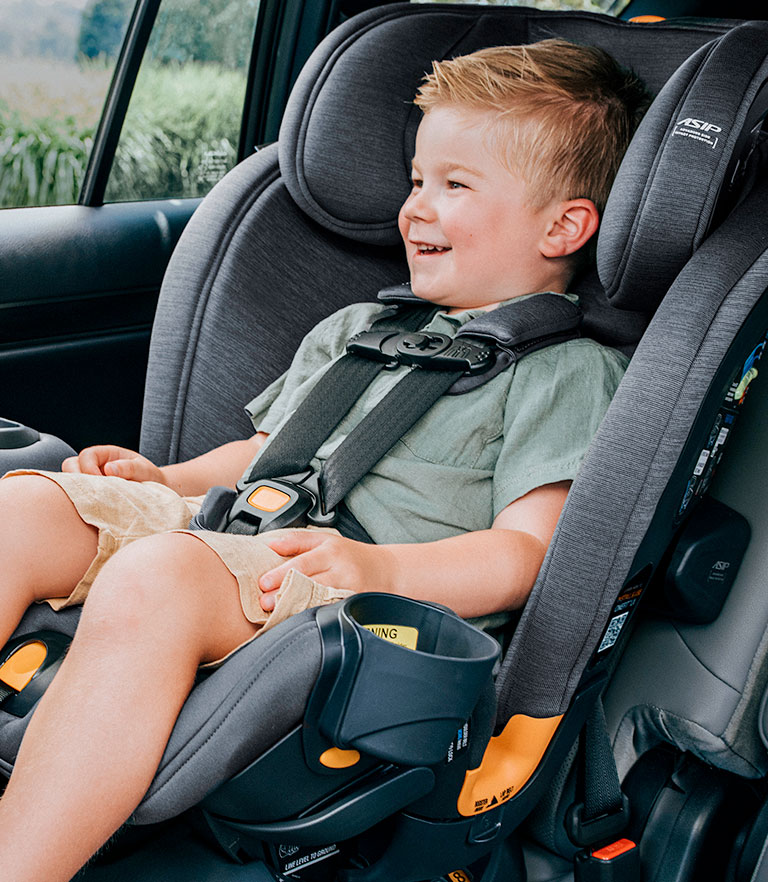

Chicco OneFit LX forward-facing car seat image

Ensure your OneFit is set up correctly for forward-facing harness usage.

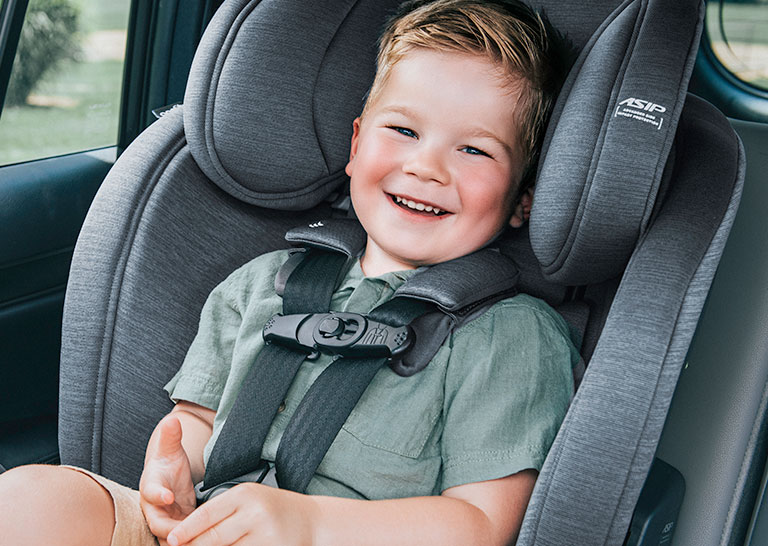

Chicco OneFit LX forward-facing toddler image

Loosen the 5-point harness, unbuckle the crotch buckle and open the chest clip.

Place your child in the car seat and ensure child is positioned correctly with back flat against the backrest. Adjust headrest position to fit your child correctly.

Buckle and tighten the 5-point harness. Harness straps should be positioned at or above the child’s shoulders. The chest clip should be at armpit level.
